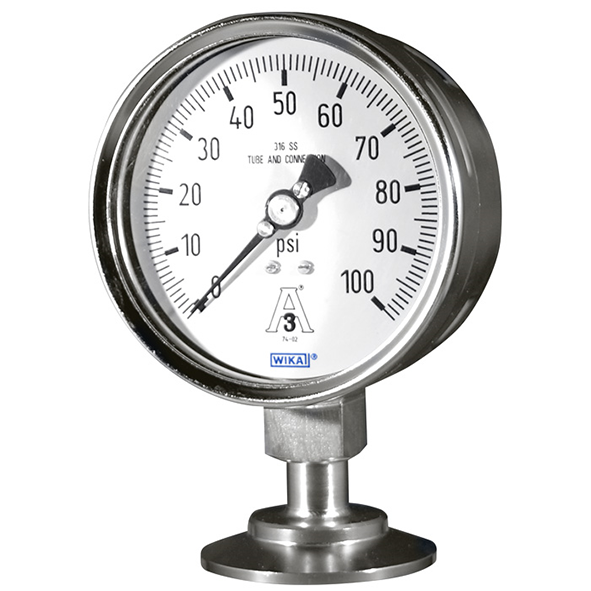

Đồng hồ đo Wika Model M93X.3A

Mô tả

Applications Pharmaceutical Industry Biotechnology Food & Beverage Diaphragm Seals WIKA Datasheet M93X.3A 04/2017 Page 1 of 4 M93X.3A Sanitary Gauge WIKA Datasheet M93X.3A Temperature Effects 0.06 psi maximum per every 10°F process and ambient temperature change System Fill (FDA compliant) Glycerine, KN 7 – Non-vacuum application Mineral Oil, KN 92 – Vacuum application Wetted Material 316L stainless steel electropolished Nominal surface finish Ra ≤ 15 µinch (0.38 µm) per ASME BPE SF4 (except for weld seam) Case Material 304 stainless steel electropolished case with vent plug and stainless steel electropolished twist lock removable bayonet ring Window Polycarbonate or Polysulfone Pointer Black aluminum, micro-adjustable, designed for zero adjustment in field Description Design All-welded construction in full compliance with ‘3A’ third party standards and meets the most rigorous biopharmaceutical industry specifications. This assembly has all the advantages of the 23X.50 series mechanical gauge (ASME B40.100 & EN 837-1) and WIKA combines it with a superior designed sanitary diaphragm seal. All external stainless steel surfaces are electropolished and the wetted components have full material identification and traceability. The diaphragm and its body have matching convolution patterns to greatly reduce potential diaphragm damage due to mishandling and to minimize temperature effects. Gauge Nominal Size 2-1/2″ or 4″ – Lower and Back Mount Process Connection 1-1/2″ to 4″ Tri-Clamp® (‘3A’ third party compliant) Pressure Range Vacuum and 0 to 15 psi up to 0 to 1000 psi, includes compound ranges (maximum working pressure is limited by installation clamp rating). Clamp provided by customer. Operating Temperature Ambient: +25°F to +140°F (-4°C to +60°C) – dry or glycerine filled case Process: +25°F to +300°F (-4°C to +149°C) Autoclave: 300°F for one hour (polysulfone window and dry case w/weep holes) Dial White aluminum with black lettering Accuracy (Ref.@ 73° F) 2-1/2″: ±2/1/2% o
