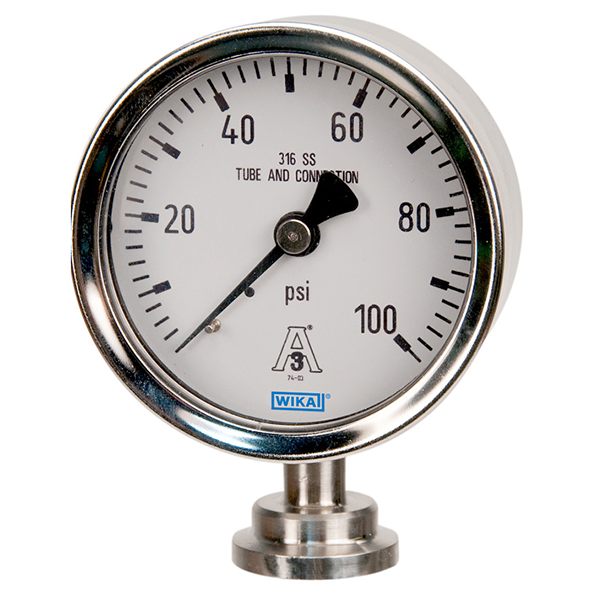

Đồng hồ đo Wika Model M93X.25

Mô tả

Applications

Pharmaceutical Industry Biotechnology Food & Beverage Special Features

3/4″ Tri Clamp® connection Flush welded diaphargm Sanitary documentation standard Description Design External, flush diaphragm with Tri-Clamp connection, requires hydraulic fluid to transmit pressure to instrument. Unit is autoclaveable when dry case and polysulfone window are specified.

Process Connection ¾” Tri-Clamp

Pressure Ranges 1,500 psi maximum, limited by installation clamp rating

Operating Temperature Media: +10°F to 100°C (standard) (>100°C available – consult factory)

Ambient: +10°C to +60°C

Gauge Size 2½”, lower mount

Accuracy (Ref. 73°F) ±2/1/2% full span (ASME B40.100, Grade A)

Wetted Parts 316L SS, electropolished

System Fill (FDA Approved) Glycerine, KN 7: Non-vacuum application Mineral Oil, KN 92: Vacuum application

Material Identification and Heat Numbers Engraved in seal body or gauge case

Serial Number Engraved on back of case
