Đồng hồ đo Wika Model M932.2C

Mô tả

Applications

Pharmaceutical Industry Biotechnology Food & Beverage Special Features

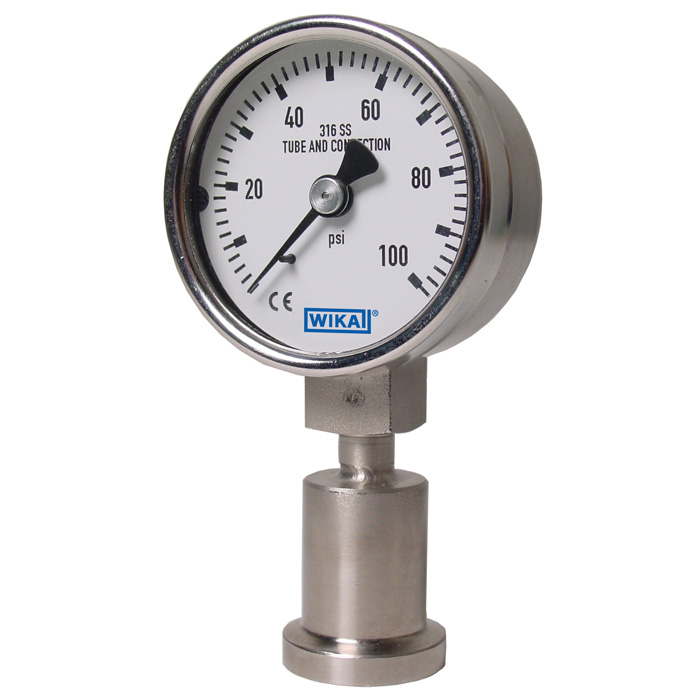

3/4″ Tri clamp® connection Dry case – autoclavable 1.5″ & 2.0″ Case avialable Description Design Type M932.2C sanitary gauge assembly provides a ¾” Tri-Clamp® process connection welded to a 1½” or 2″ stainless steel gauge. This assembly meets the criteria set by “3A”. This gauge is ideal for applications in the food & beverage, pharmaceutical and biotechnology industries.

Process Connection ¾” Tri Clamp®

Pressure Ranges 1,500 psi maximum limited by installation clamp rating

Operating Temperature Media: +10°C to 100°C Ambient: +10°C to +60°C

Gauge Size 1½” or 2″, lower back mount

Wetted Parts 316L SS

System Fill (FDA approved) Glycerine, KN 7 – non-vacuum application Mineral oil, KN 92 – vacuum application
